PU Foaming Machie Production Line

Short Description:

This machine is mainly for continuous making sponge density 8-80kg/m³.It adopts high automatic level,more flexible operation touch screen control system,user can store 10 kinds of different formulations and adjust the formulation anytime,and remote control of cost more scientific and visual.

Apply to furniture,chest circumference, shoes, electronics, packing, clothing, car, aviation etc. The production line has a fully automatic computer and manual controls, easily to operate,it’s the beat choice for soft polyurethane equipment.

Send email to us get more information

Product Detail

Product Tags

Parameter

Model	Description
Size	L:38m× W:4.5m ×H:3.5m (excluding tank area)
Foaming Components	12-14 components
Foaming Width	1.3 M —2.3 M
Foaming Height	Below 1.25 M
Foam Density	5 Kg / m 3 --60 Kg / m 3
Foaming Speed	2.5 M / min —6.5 M / min
Total Powder	110 kw
Mixing Head Motor Power	30KW

Machine Description

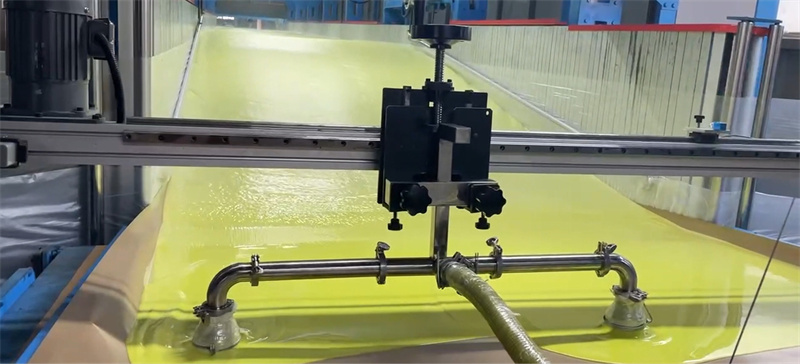

Spraying Method

Grooved foaming and pouring foaming (two sets of nozzles）

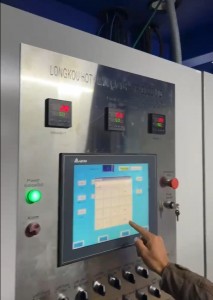

Electronic Control Part

1. All inverters are from Taiwan Delta brand

2. PLC Programmable controller and touch screen adopt Taiwan Delta brand

3. All contactor buttons are Schneider brand

4. XL Standard combination cabinet

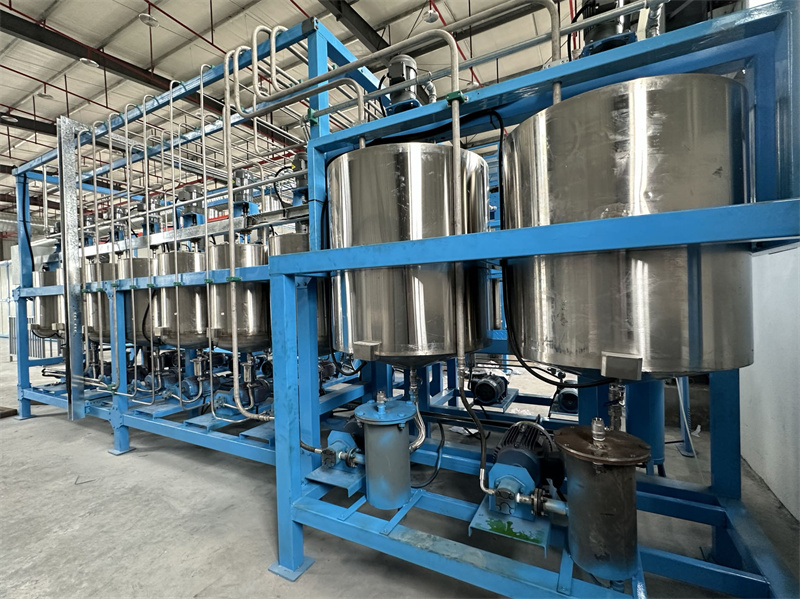

Material Tank

14 components:PPG/5-10Density sponge/TDI/Dichloromethane-MC/Water/A33/T-9/Silicone oil/Red/Yellow/Blue/Lubricate/Auxiliary tank area/ Large material tank area
